semi automatic sealing machine
large plastic bags continuous sealing machine semi automatic sealer equipment vertical seal with date printer function

Product Introduction on vertical sealing machine for large plastic bags:

vertical sealing machines.jpg

1.Suitable for kinds of sealing material 2.Adjustable stepless speed 3.Adjustable temperature 4.Easy operation

YX-QLF1680 automatic film sealing machine is especially designed to seal plastic bag packing heavy or large volume stuff. The machine is able to load max 30 kg goods. Easy to adjust height of sealing head and conveyor table. It finishes continuous carrying, sealing and printing in one operation. It adopts electronic constant temperature mechanism and stepless speed regulating transmission motor. It can seal plastic film in various kinds of materials. It has counter to count the number of bags sealed.

Main Parameter of Vertical bags sealing machine semi automatic :

wheels for sealing machine.jpg

Specification of vertical sealing machine for large bags:
Model YX-QLF1680
Power source 220V 50/60Hz
power 1000W (800W for heating)
Sealing speed 0-13m/min
Sealing width 15 mm
Temperature range 0-300 °C
Max. conveyor loading 30 kg
Packing height 50-800 mm (adjustable)
weight 130 kg
Machine size 1700*750*1600 mm

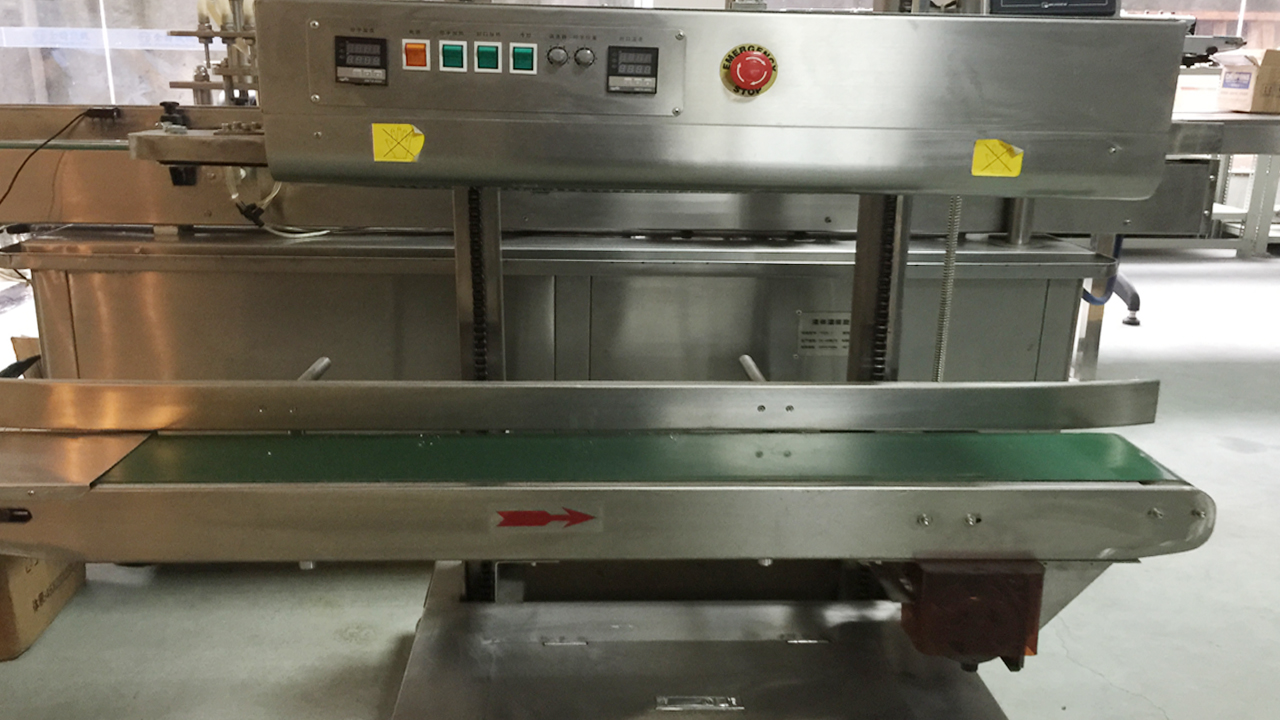

Clear pictures for vertical sealing machine

side pictures for sealing machine.jpg

back side pictuers for large bags sealing machine.jpg

plastic bags sealing machine.jpg

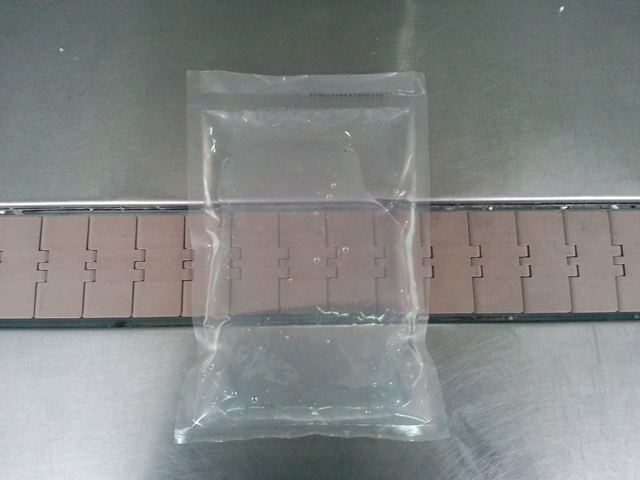

samples for sealing vertical sealer.jpg

Wooden case packing for vertical sealing machine model YX-QLF1680

vertical sealing machinery.jpg

Terms&conditions of vertical sealing machine plastic bags

vertical sealing machine.jpg
