Model YX-7022 automatic L type film wrapping sealer shrinking machine with UV tunnel.

The customer use for packing the pizza tray, so we use a similar size box testing.

Pizza tray samples.jpg

 L sealer shrinking machine with UV tunnel.jpg

►Machine applications



►Functions & features



►Technical parameters



►Drawings of Machine with UV tunnel



►Machine main parts name


►Wooden package before shipment


►After-sales services


Automatic L bar sealer shinking packing machine applications:

The automatic L-type sealing shrinking packaging machine is a full-automatic unmanned packaging machine, which can be used with an automatic packaging assembly line.

It is widely used in mass production industries such as printing, color boxes, greeting cards, photo albums, photo frames, medicine, electronics, daily chemicals, cosmetics, and so on.

applications L type seal.jpg

Functions & features of Model YX-7022 L-type sealer shrinking machine

Model YX-7022 automatic L-type sealing machine concentrates bag-molding, sealing, cutting, and object transmission in one operation.

using shrink film as packaging materials.It has advantages of simple operation and high capacity. It is suitable for the need big-scale production.

The thermal shrink machine is specially designed to combine with Model YX-7022 to shrink film after sealing.

After sealing and cutting, products are transmitted into a thermal shrink tunnel for shrinking.

Main features:
High capacity of 25packs/min
A simple adjustment is done when packing size changes, no other assistant device is needed
Packing of the small size of objects is reached by functional choice
Advantage of short sealing time and perfect sealing strength
Adopt an American “Dupont” Teflon coat for sealing cutter that has the function of stick-proof and anti-high temp.
Automatic film feeding and waste film collection
Vertical & horizontal photoelectric sensors are optional for different object

Technical parameters of YX-7022 auto L type sealing shrinking machine

Model YX-7022

Capacity 1200-1600 packs/hour

Power Source 220V/50-60HZ

Total Power 1.35 Kw

Power of Transverse Sealing 550W

Power of Vertical Sealing 500W

Sealing Temp. 170¡æ, according to thickness of film

Sealing Time 0-3 Sec, normally 0.8-1.2 Sec

Thickness of Film 0.03-0.20mm

Speed of Conveyor 21.3m/min(front), 20m/min(rear)

Speed of Film Feeding 17.6m/min

Speed of Film Pulling 19.4m/min

Air Pressure 4 kg/cm2

Conveyor Motor AC 220V/90W

Motor of Film

Feeding AC220V/25W(have brake)

Motor of Waste

Film Pulling AC220V/40W(have brake)

Motor of Waste

Film Turning AC220V/15W

Packing Material POF, OPP, PE

Max. Sealing Size Unlimited length   Width 750

Max. Packing Size L500*W350*H110mm

Machine Size L2350*W1250*H1500 mm

Weight 330 Kg

L sealer shrinking machine with view window.jpg

L bar sealing shrinking.jpg

Drawings of pizza Tray L bar sealer shrinkage Machine with UV tunnel

UV tunnel is an optional choice, some food packaging will use UV tunnel.

Overview Drawing of L sealer shrink machine with UV tunnel.j

Drawing of L sealer shrink machine with UV tunnel.jpg

Physical photos of UV tunnel

UV tunnel physical photos.jpg

UV tunnel inside details

Uv tunnel inside detail.jpg

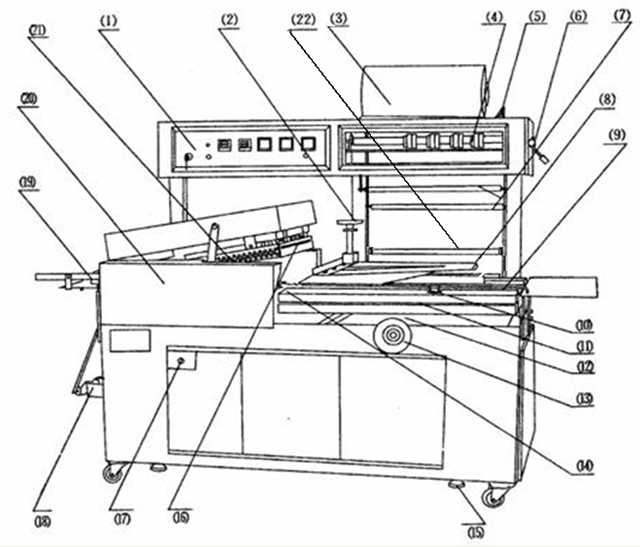

Machine main parts name

(1)manipulate plate             (2) height adjustment the handwheel

( 3) shrinkable film             (4) installed shrinkable film device

(5) shrinkable film fixed bar     (6) tension membrane the clutch handle

(7) circular shaft               (8) shrinkable film openings set square ()

(9) conveyor belt               (10) urgent stop switch

(11) cover                     (12) shrinkable film openings set square (next)  (13) width adjustment the handwheel

(14) photo-sensor

(15) adjust foot plate             (16) sealing dao ()

(17) traction motor               (18) ShouFei switch

(19) connected platform           (20) cutter cover shell

(21) budge switch function board

(22) film feeding on the horizontal bar (can fluctuate regulation) Figure 1

Machine main parts name L type sealer.jpg

 Wooden package before shipment

heat shrink tunnrl packaging.jpg

UV tunnel packaging.jpg

PO film packaging detail.jpg

sealing shrinking machine wooden package.jpg
